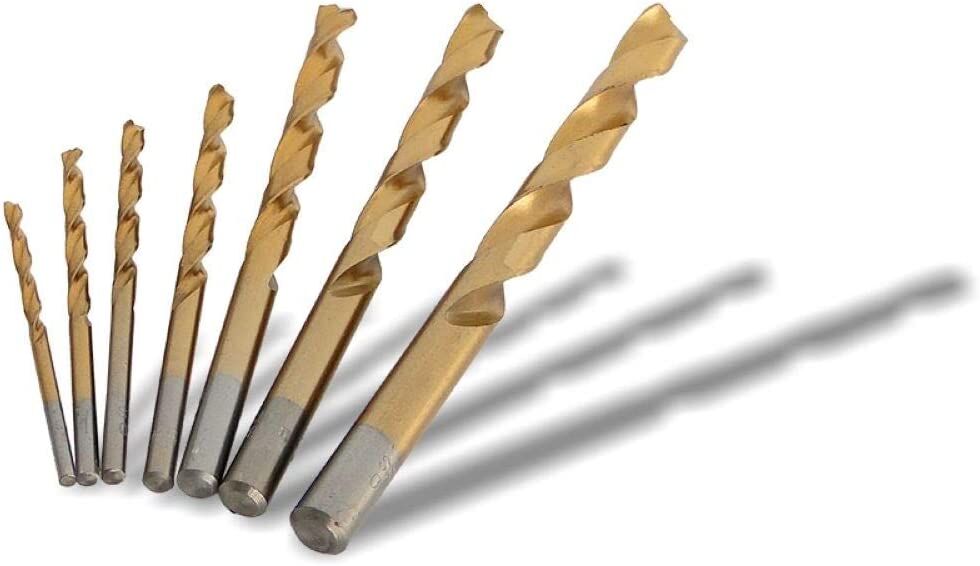

Borrsats HSSG-TIN Gängborr M3-M12 (2,5-10,2mm)

HSSG-TIN Core Hole Drill Kit M 3 - M 12
DIN 338

Material: HSSG-TIN
Quality: profile ground quality
Surface treatment: titanium nitride (TiN) coated
Cutting drift: right
Point angle: 118°

HSSG-TIN Drill Bits - Included Dimensions:
1 pc.: 2,5 mm (core hole drill for M 3 x 0,5)
1 pc.: 3,3 mm (core hole drill for M 4 x 0,7)
1 pc.: 4,2 mm (core hole drill for M 5 x 0,8)
1 pc.: 5,0 mm (core hole drill for M 6 x 1,0)
1 pc.: 6,8 mm (core hole drill for M 8 x 1,25)
1 pc.: 8,5 mm (core hole drill for M 10 x 1,5)
1 pc.: 10,2 mm (core hole drill for M 12 x 1,75)

Range of applications:
Standard drill bit for drilling steel and cast, alloyed and non-alloyed, grey cast iron, sintered powder metal, german silver, graphite.

TiN-coated (Titan-Nitrid):
Titanium nitride coating is applied by a reactive ionization of vaporized “target” titanium at about 500 °C.
The hardness is about 2.300 HV.
The surface roughness is reduced and enables in combination with the extreme hardness very good “slip” properties and a high wear resistance as well as a higher tool life.
